There are two independent flow channels inside the 4-way flange ball valve, showing a double L shape. The small size of the valve can be opened and closed by the handle, and the large size can be operated by adding a worm gear; the upper flange connection plate conforms to the ISO 5211 standard, and can also be matched Electric Actuator, Pneumatic Actuator.

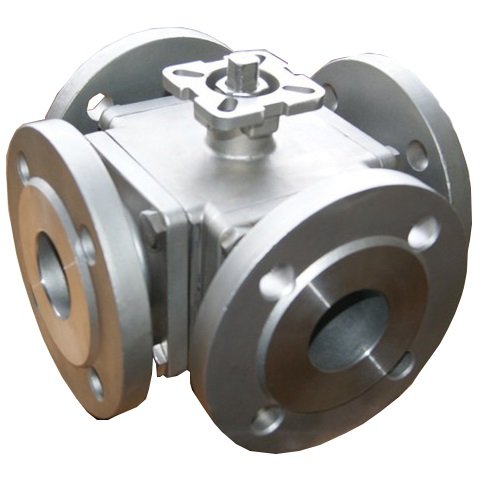

four-way flanged ball valve
Matching handle switch, can also be matched with worm gear operation
4-Way Ball Valve with Upper Flanged Landing Disc – ISO 5211 Compliant

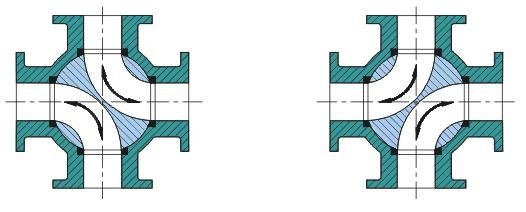

LL type four-way ball valve flow diagram
“LL” type four-way ball valve only needs to operate the wrench or the actuator to turn the ball 90°, and switch the flow direction of the two media at the same time, which is convenient and fast, and realizes the effect of one valve with multiple functions.
China 4-way flange ball valve Manufacturer

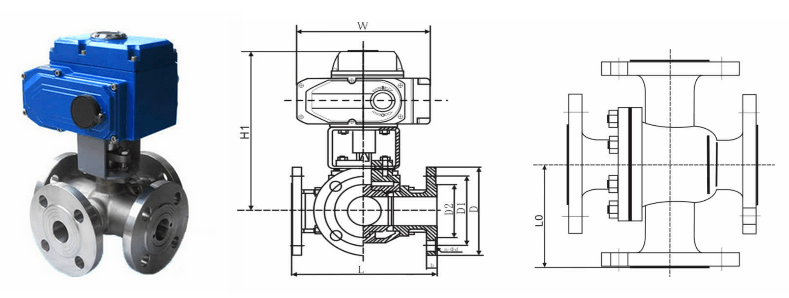

electric Flanged four-way ball valve
The electric four-way ball valve is a four-way four-way seat ball valve with an “X”-shaped flow channel. It can switch the flow directions of two media at the same time by rotating 90°, which is convenient and fast, and realizes the effect of one valve with multiple functions. The electric four-way ball valve replaces the complex operation of the previous four valves, and relieves the problems of large space, high cost, and cumbersome operation. It can realize the switching of positive and negative water supply. Every 90 degrees of rotation, the water supply mode can be switched once, and the operation is simple. convenient.

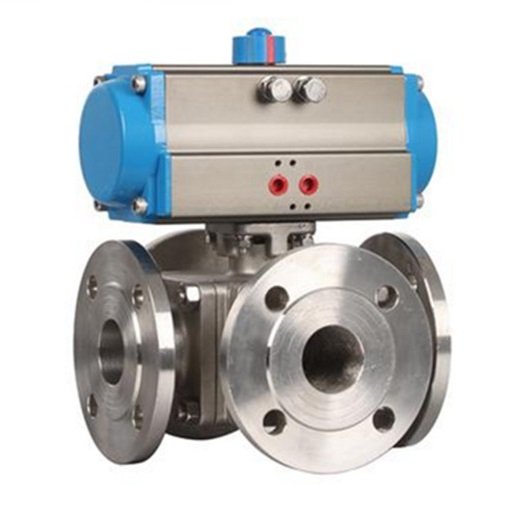

Pneumatic four-way ball valve flange
The two channels of the pneumatic four-way ball valve ball are arranged in an X shape, and the diameters of the four channels are evenly distributed on the equatorial circular section of the sphere. When the sphere rotates 90 degrees clockwise, the two opposite channels can communicate with each other. In the power station system, it is called a two-way water supply switch valve (also called an air reversing switch valve in the petrochemical system). Reverse cycle water supply system.
Product Overview
This page covers a four-way flanged ball valve with a multi-port flow arrangement. The product information shows that the required flow path is an important part of the selected configuration.
Selection Notes
Before ordering, confirm the required flow-routing arrangement, operating conditions, flange connection, selected materials, operating method and available installation space.
FAQ
What flow arrangement is required for a four-way ball valve?
Provide the required piping and flow-routing arrangement so the appropriate four-way configuration can be reviewed.
What should be confirmed for the flanged connection?
Confirm the mating flange requirement and the installation details for the selected piping system.
Can the operating method be selected for this valve?
The product page identifies several operating approaches. Confirm the required operating method for the selected installation.
