Electric Actuator threaded ball valve consists of electric actuator and two-piece/three-piece ball valve with ISO 5211 upper flange. The valve body material is CF8 and CF8M, the valve seat material is PTFE and PPL, and the pressure level can be selected from 1000WOG and 2000WOG
Electric stainless steel threaded ball valve manufacturer
Specify on/off or modulating control (4–20 mA) for the selected electric actuator. Any hazardous-area or special enclosure requirement must be separately confirmed.
Electric threaded ball valve can be divided according to the type of valve body: 1000WOG, 2000WOG, two-piece, three-piece, etc.
Voltage can be selected: DC24V, AC110V, AC220V, AC380V, etc.
Withstand temperature: -50℃-250℃
Body selection: 1000WOG/2000WOG
Two-piece/Three-piece
Electric actuator selection: switch type, analog adjustment type, 485 communication type
Material: stainless steel CF8, CF8M
Thread type: NPT thread, G thread, etc.
3/2PC Electric threaded ball valve

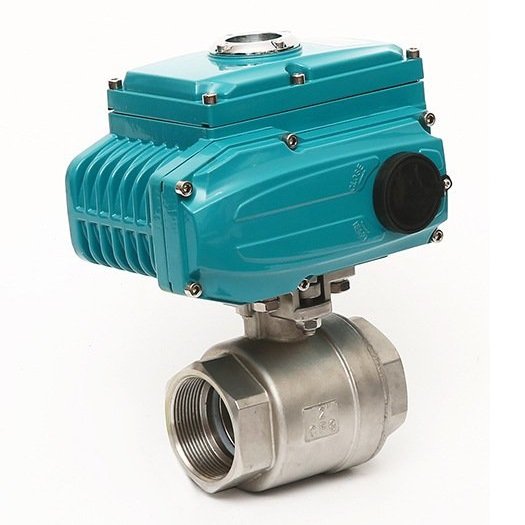

On the left side of the above picture, the 2pc electric threaded ball valve is assembled into two parts, which is cheaper than the 3pc.

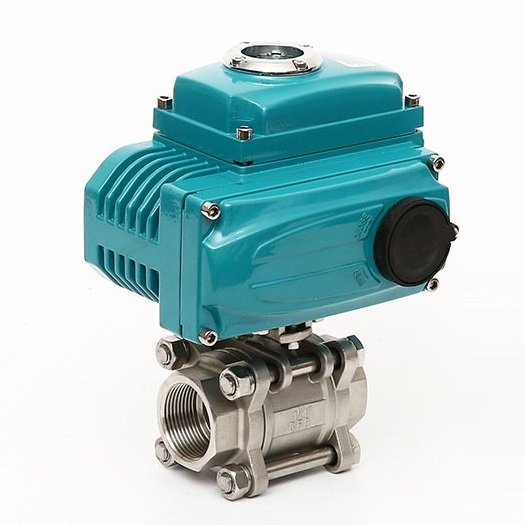

On the right side of the above picture, the 3pc electric threaded ball valve is assembled into a whole by a 3-section structure, fastened with long bolts, and the pressure rating and price are higher than that of 2PC.

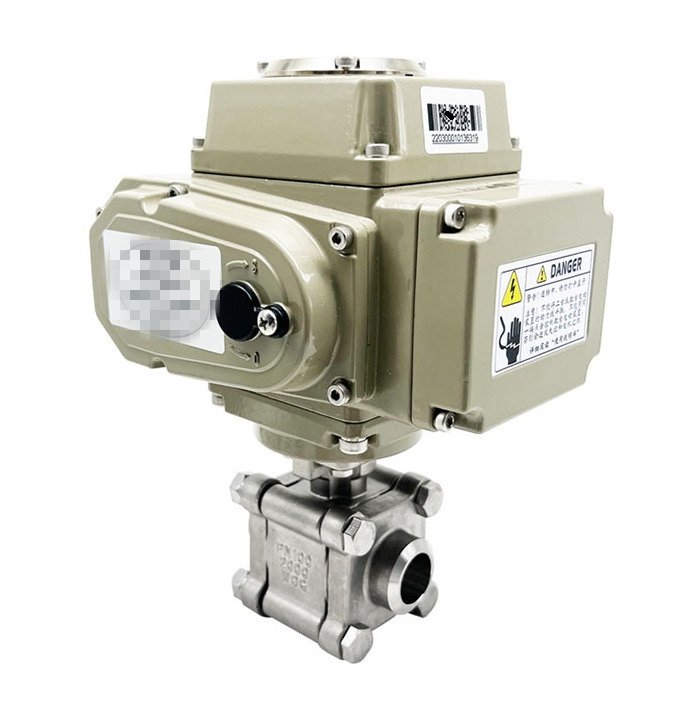

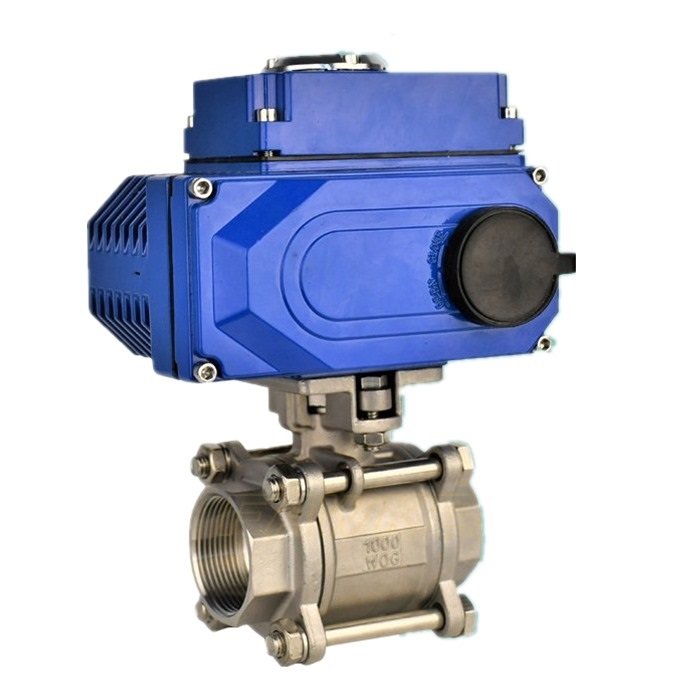

Electric threaded ball valve 1000WOG & Electric threaded ball valve 2000WOG
The difference between the 1000WOG threaded ball valve and the 2000WOG threaded ball valve is that the 1000WOG has a lower pressure, and the overall structure of the valve body is thinner than the 2000WOG. We recommend that the maximum pressure is 4Mpa. The 2000WOG ball valve has a relatively high pressure and is relatively thick, and the valve is much stronger. We recommend a maximum operating pressure of 8Mpa.
This product is a threaded three-piece ball-valve configuration operated by an electric actuator. The current page identifies threaded end options and lists electric actuator selections. Confirm the selected body construction, seat and body materials, operating duty and actuator requirement before ordering.
Product Overview
The current page presents an electrically actuated threaded ball-valve configuration, with three-piece construction identified in the title. It also lists stainless-steel body and seat-material options; the exact valve and actuator configuration must be selected for the application.
Selection Notes
Confirm the medium, pressure and temperature conditions, size, threaded-end requirement, selected body and seat materials, required shutoff duty, power supply, on/off or regulating duty, control-interface requirement and applicable project standard before ordering.
FAQ
Which threaded-end information should be provided?
State the required thread type and the mating-piping details for the selected threaded ball valve.
How should the body construction be specified?
Confirm the required body construction and the selected valve materials together with the service conditions.
What actuator information is needed?
Provide the power-supply requirement, required duty and control-interface requirement for the selected electric actuator.
