JIS 20K Ball Valve belongs to the first grade of the medium pressure level of the Japanese standard. It can be operated by handle, worm gear, pneumatic actuator, and electric actuator. The valve is assembled in two pieces, and the interior is a solid ball. Confirm the top mounting interface shown on the selected valve drawing, including any specified ISO 5211 requirements.
China JIS 20K Ball Valve Manufacturer
It is suitable for water, steam, oil and some pipelines with corrosive medium whose working temperature is less than or equal to 150℃, and is used to connect or cut off the medium in the pipeline.
Size: 15A-300A
Material: SCS13, SCS14, SCPH2
Operation mode: handle, worm gear, pneumatic, electric
Design Rating: JIS B2071.ASME B16.34;
Face to Face: JIS B2002;
Flanged Ends: JIS B2220;
Inspection & Testing: JIS B2003

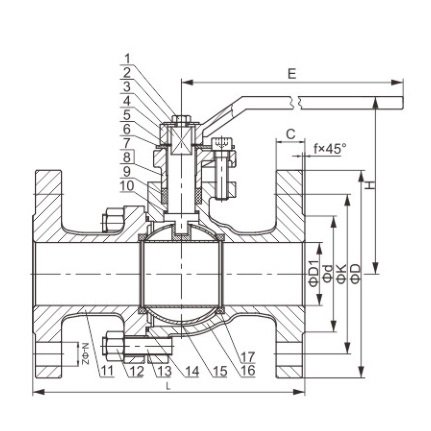

stainless steel JIS 20K Flanged Ball Valve Structure Diagram
Flange JIS 20K Ball Valve Size Chart
| NPS | D1 | d | K | D | C | f | N-OZ | L | H | E |
| 15A | 15 | 51 | 70 | 95 | 14 | 1 | 4-15 | 140 | 79 | 120 |
| 20A | 20 | 56 | 75 | 100 | 16 | 1 | 4-15 | 152 | 82 | 120 |
| 25A | 25 | 67 | 90 | 125 | 16 | 1 | 4-19 | 165 | 109 | 150 |
| 32A | 32 | 76 | 100 | 135 | 18 | 2 | 4-19 | 178 | 113 | 150 |
| 40A | 38 | 81 | 105 | 140 | 18 | 2 | 4-19 | 190 | 143 | 230 |
| 50A | 50 | 96 | 120 | 155 | 18 | 2 | 8-19 | 216 | 151 | 255 |
| 65A | 65 | 116 | 140 | 175 | 20 | 2 | 8-19 | 241 | 176 | 280 |
| 80A | 78 | 132 | 160 | 200 | 22 | 2 | 8-23 | 283 | 209 | 350 |
| 100A | 98 | 160 | 185 | 225 | 24 | 2 | 8-23 | 305 | 228 | 350 |
| 125A | 125 | 195 | 225 | 270 | 26 | 2 | 8-25 | 381 | 316 | 630 |
| 150A | 150 | 230 | 260 | 305 | 28 | 2 | 12-25 | 403 | 353 | 830 |
| 200A | 200 | 275 | 305 | 350 | 30 | 2 | 12-25 | 502 | worm gear | worm gear |
| 250A | 250 | 345 | 380 | 430 | 34 | 2 | 12-27 | 568 | worm gear | worm gear |
| 300A | 300 | 395 | 430 | 480 | 36 | 3 | 16-27 | 648 | worm gear | worm gear |
Frequently Asked Questions
Can this JIS 20K ball valve replace an existing JIS 10K valve?
Do not assume direct interchangeability. Compare the required pressure-temperature rating, valve size, flange dimensions, facing and face-to-face length for the actual piping and selected valve. Confirm the replacement against the approved drawing before installation.
What should I confirm before choosing the handle-operated version?
Confirm the selected size, medium, operating conditions, differential pressure and the space needed for lever travel. Ask for confirmation that manual operation is appropriate for the required valve configuration rather than choosing solely from the product title.
What details should I include in an inquiry for this JIS 20K model?
Specify the required size, body-material option, connection and operating method, together with the medium and pressure-temperature conditions. State the applicable piping specification and any required inspection documentation so the order can be checked against the selected configuration.
