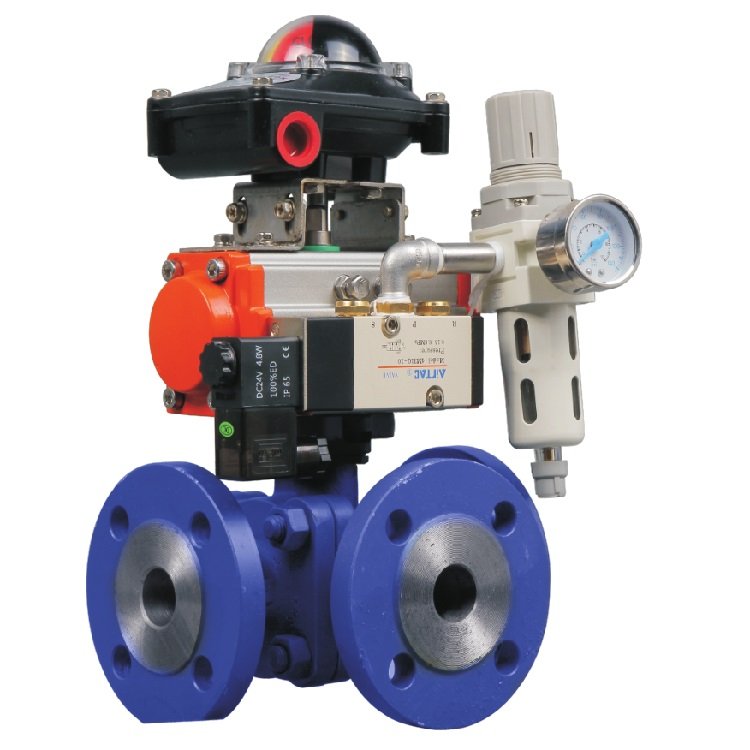

Pneumatic three-way Flange ball valve is mainly composed of a cylinder and a three-way ball valve body. There are two kinds of stainless steel and carbon steel, The cylinder can be single-acting or double-acting. The valve body can be L-shaped or T-shaped. It can also be equipped with other accessories, such as positioners and limiters. Switch, electromagnetic reversing valve, pressure reducing filter.
Valve body material: carbon steel, stainless steel
Size: 2”-32”
Connection method: flange
Operation mode: pneumatic
Connection standard: ANSI Class 150/300, JIS 10K, DIN PN16/PN25
Product Overview
This page presents a three-way flanged ball valve with pneumatic operation. The selected flow arrangement and operating configuration should be reviewed for the intended installation.
Selection Notes
Confirm the required flow pattern, operating medium, service conditions, flange connection, selected materials, actuator arrangement and any control accessories before ordering.
FAQ
What flow pattern is required for a three-way ball valve?
Provide the required flow-routing arrangement so the appropriate three-way configuration can be reviewed.
What should be specified for pneumatic operation?
State the required operating arrangement and any control or feedback requirements for the selected actuator configuration.
What needs to be confirmed for the flanged connection?
Confirm the mating flange requirement and installation details for the selected piping system.
