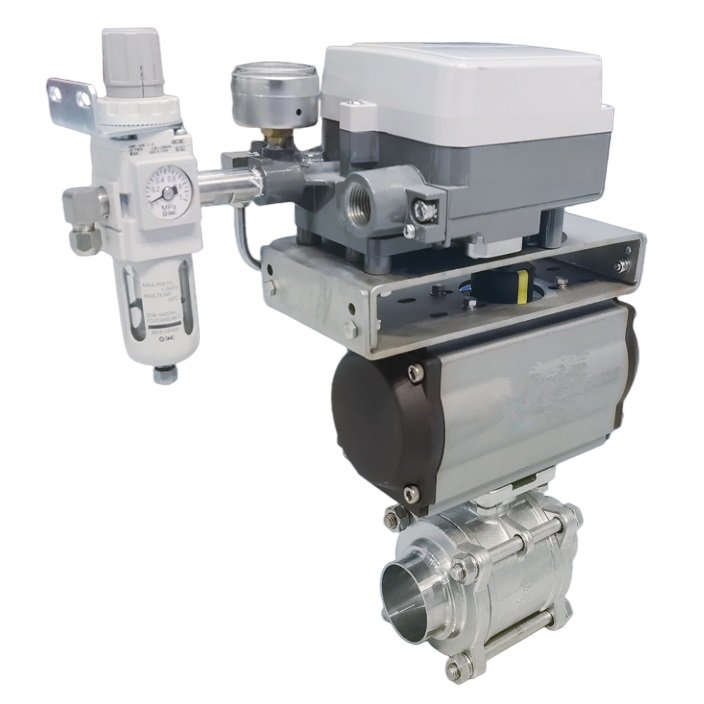

pneumatic welded three piece ball valve-Stainless steel The valve body is composed of 3 pieces of fittings, the upper flange conforms to ISI 5211 standard, so it can be directly assembled with pneumatic actuators

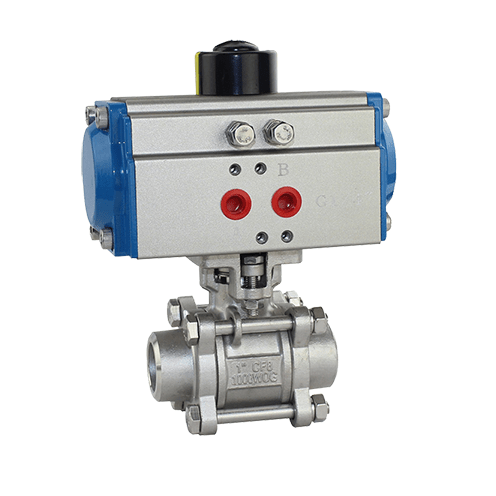

pneumatic welded ball valve single or double acting
Pneumatic actuators can choose single or double acting, and can also be equipped with accessories such as Air directional control valve, Positioners, limit switch, etc.
pneumatic welded ball valve
The pneumatic welded ball valve body can choose 1000WOG or 2000WOG, we even have a higher pressure ball valve for you to choose.
The material is mainly stainless steel 304, stainless steel 316L, and can also be manufactured according to your requirements
China pneumatic welded ball valve manufacturer
Pneumatic actuator: double acting or single acting
Body Size: 1/4″-4″
Optional accessories: air solenoid valve, Air Filter Regulator, Positioners, limit switch
Pressure level: 1000WOG, 2000WOG, higher pressure needs to be customized
Body material: CF8, CF8M, WCB
Seat material: PTFE, PPL, etc.
Product Overview
This page covers a welded three-piece ball valve with pneumatic operation. The selected connection and operating arrangement should be considered together with the application requirements.
Selection Notes
Confirm the medium, operating conditions, required welded connection, selected materials, seating arrangement, actuator configuration and any control accessories before ordering.
FAQ
What should be confirmed for the welded connection?
Confirm the required piping connection and installation details for the selected valve configuration.
What pneumatic arrangement is needed?
Specify the required operating arrangement and any control or feedback requirements for review.
Which details should be included in a quotation request?
Provide the medium, operating conditions, size, connection, selected materials and required actuator arrangement.
