PFA PTFE Lined Pneumatic Lug Butterfly Valve consists of a pneumatic actuator and a lug butterfly valve body with a lining. The pneumatic actuator can choose double-acting or single-acting according to site requirements. The lining material of the valve body can choose PFA, PTFE, etc. Plate can choose 316L or lined valve plate
The valve body adopts a split type, which is more effective for maintenance according to the later conditions.
The top of the pneumatic actuator can be equipped with a signal feedback device

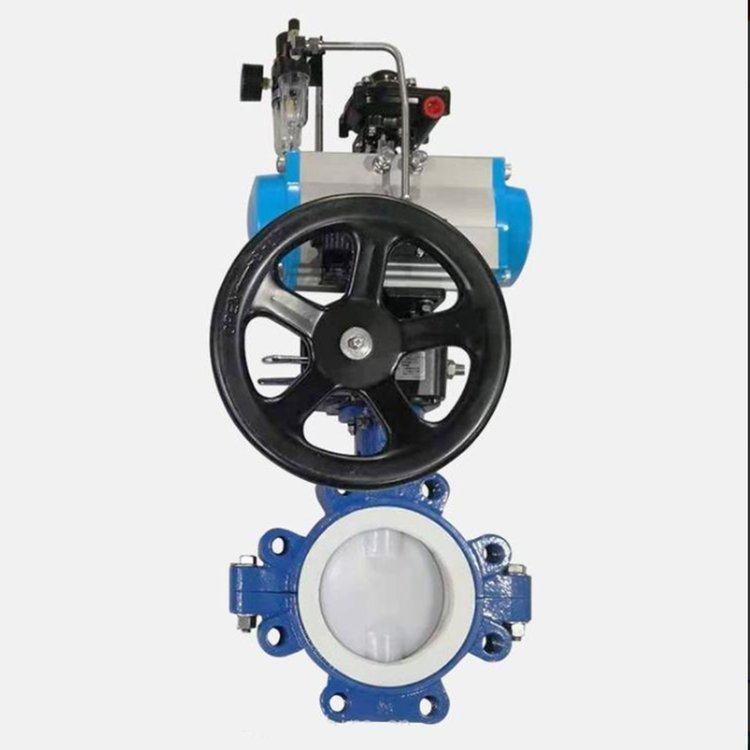

PFA Lined Pneumatic Lug type Butterfly Valve
Confirm the supplied air filter/regulator accessories separately from any optional worm gearbox and handwheel for manual operation. Verify the actual manual operating arrangement and its operating instructions for the selected assembly.
Frequently Asked Questions
Will the disc be lined, or will the medium contact stainless steel?
The page describes a stainless-steel disc and a lined-disc alternative. Specify the required wetted-material arrangement and request confirmation of the body lining, disc and seals for your chemical and operating conditions.
How do I specify the required action if the air supply fails?
State the required failure position and operating conditions and ask for confirmation of the actuator and pneumatic circuit. The available single-acting and double-acting descriptions do not by themselves establish the response of the complete installed assembly.
Are position feedback and manual operation included in the quoted assembly?
The page describes feedback and manual-operation options. Identify which accessories you require and request the assembly drawing and scope of supply, including the operating and control arrangement, before ordering.
