QT450 Pneumatic Lug Butterfly Valve

QT450 Pneumatic Lug Butterfly Valve

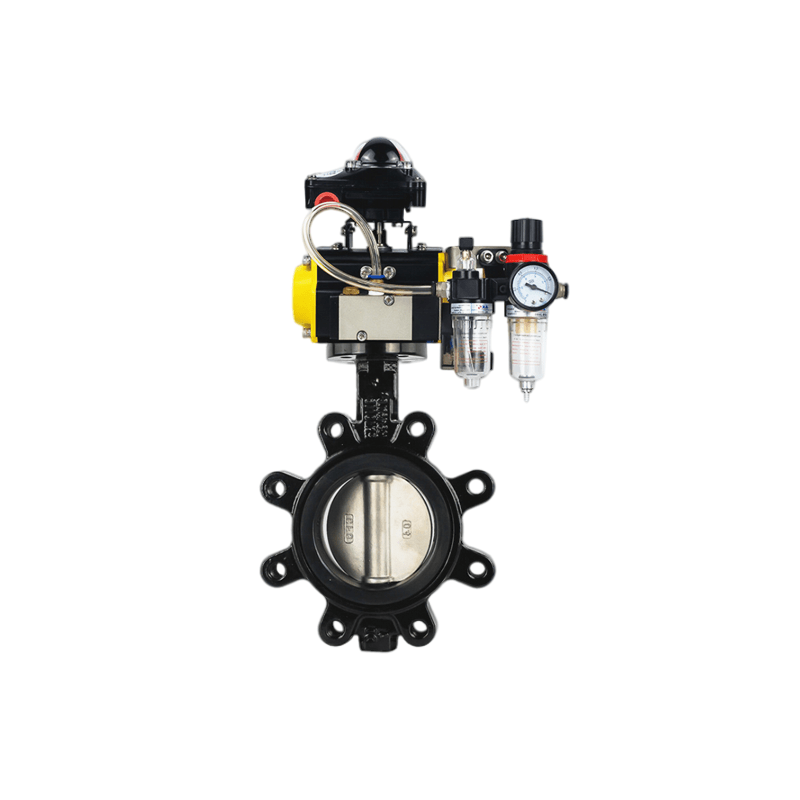

The QT450 pneumatic lug butterfly valve is a resilient-seated centerline lug-type isolation valve assembled with a pneumatic actuator for automated on-off or modulating service in water supply networks, HVAC distribution, fire protection headers, irrigation mains and general industrial piping. Manufactured by Trekre & Fouten Valve at our Wuxi factory, this lug butterfly valve uses ductile iron QT450 as the standard body material for municipal and utility duty, a centerline disc-and-seat geometry for economical shutoff, ISO 5211 top-flange actuator mounting and lug ears that allow downstream flange removal for maintenance without disturbing the upstream line.

Compared with wafer clamp butterfly valves, the lug body pattern provides independent bolting on each flange side, which suits end-of-line maintenance and dead-end service on pump discharge headers. Compared with double-flange triple-offset metal seated pneumatic valves, the QT450 resilient seated lug design stays cost-effective for moderate temperature and pressure duty where EPDM, NBR or PTFE seats provide adequate sealing. The valve accepts double-acting or spring-return single-acting pneumatic actuators and can be fitted with a positioner for 4–20 mA proportional control, solenoid valves, air filter-regulators, limit switches and optional handwheel override for local manual operation.

Structure and working principle

The valve body follows a lug (semi-lug or full lug) pattern with threaded or through-bolt ears cast into the body flanges. The disc rotates 90 degrees around a stem supported by internal bearings and a packing gland. In the centerline design the stem axis passes through the disc centerline; the disc turns in the flow bore and compresses the seat ring at full closure. The QT450 ductile iron body is cast to provide a smooth bore, standardized flange drilling for ANSI Class 150, JIS 10K, EN PN10/PN16 or DIN equivalents, and a standardized ISO 5211 mounting pad on the bonnet for direct actuator attachment.

The pneumatic actuator bolts to the ISO 5211 pad on the valve bonnet. Rack-and-pinion or scotch-yoke actuator construction is typical for this valve class: supply air at typically 3–7 bar drives the piston mechanism to rotate the stem. Double-acting actuators use air pressure to open and close without internal springs; they hold the last position when air supply fails unless the control system vents both ports. Single-acting spring-return actuators use air on one side and internal springs to drive the disc to a defined fail-safe position when pilot air is lost. The actuator housing is aluminum alloy with stainless steel fasteners, epoxy-coated for corrosion protection, and fitted with a visible open/closed position indicator on the top cover.

Optional accessories include electro-pneumatic positioners for modulating flow, Namur-pattern solenoid valves for DCS on-off commands, air filter-regulators to remove moisture and stabilize supply pressure, dry-contact or proximity limit switches reporting fully open and fully closed states, and a handwheel operating device that allows manual override when plant air is unavailable during commissioning or emergency operation.

Nominal size and pressure class

Standard production covers nominal diameters from DN50 to DN1200 (NPS 2 to 48) in common increments for waterworks and process branches. Pressure ratings typically include EN PN10 and PN16, JIS 10K and ANSI Class 150 lug configurations. Face-to-face dimensions follow manufacturer tables for centerline lug butterfly valves or project-specific requirements. Connection dimensions can be supplied to United States, European, Japanese, German and other regional flange standards as specified on the purchase order. Confirm flange drilling, gasket type and bolt length before ordering companion flanges and full-face or ring gaskets.

Body, disc and seat materials

The primary body material for this product line is ductile iron QT450, selected for strength, machinability and satisfactory performance in water, air and mild chemical service within the alloy temperature limit. Alternative body materials include cast steel WCB, stainless steel CF8 and CF8M when project specifications require higher mechanical strength or different corrosion resistance. The disc can be ductile iron QT450 with nickel plating or epoxy coating, stainless steel 304 or 316, or duplex grades for more aggressive brine or chloride environments. Seat options include EPDM for potable water and HVAC, NBR for oil-bearing air, PTFE for more aggressive chemicals within the liner temperature limit, and VITON where higher temperature elastomer service is required.

Sealing form and leakage performance

Primary sealing relies on the resilient or PTFE seat ring compressed by the disc at full closure. Centerline lug designs provide dependable shutoff for isolation duty in water, air and compatible process fluids. Closure leakage is verified by seat test per the agreed project protocol and manufacturer test procedure; state the required leakage class or test medium in the purchase specification rather than assuming a universal rating across all sizes and seat materials.

Pneumatic actuation and control options

Double-acting actuators deliver fast cycling with opening and closing strokes typically within a few seconds when plant air pressure and actuator sizing match the valve torque requirement. Single-acting spring-return units provide fail-open or fail-close behavior according to spring placement and solenoid piping. A positioner receives 4–20 mA or 0–10 V signals and modulates pilot air to position the disc for flow regulation. Limit switch boxes with visual position indicators support remote monitoring without entering the valve gallery. Solenoid valves and filter-regulators should be selected for the plant air quality, voltage and area classification stated on the instrument datasheet.

After installing the pneumatic reversing valve, the direction of the airflow driven by the solenoid is switched to control the opening and closing of the valve. Single-acting air-to-open types vent to close and fail closed on air loss; single-acting air-to-close types fail open on air loss. Match actuator bore and spring set to the differential pressure and disc friction expected at the operating temperature.

Applicable working conditions and industries

This QT450 pneumatic lug butterfly valve is specified on potable and process water headers, chilled and hot water HVAC circuits, fire protection and sprinkler mains, compressed air branch lines, irrigation laterals, wastewater collection headers and general plant utility interfaces. The lug body suits pump discharge isolation, end-of-line tie-ins and maintenance scenarios where downstream flange removal is required. For slurry, high particulate load or cavitation-prone service, consult Trekre & Fouten application staff on body material, seat selection and disc options before finalizing the specification.

Standards, inspection and delivery

Design and inspection commonly reference EN 593, MSS SP-67, API 609 Category A or GB/T 12238 depending on the project region. The valve body top flange complies with ISO 5211 for interchangeability with standard pneumatic actuators and drive accessories. Each valve undergoes shell pressure test and seat closure check before shipment. Material certificates, dimensional reports and functional actuator tests can be included in the QA dossier when requested. Valves are cleaned, flange-faced protected and packed for export from Wuxi. Trekre & Fouten Valve engineers can review your medium composition, temperature profile, fail-safe direction and control signal type to confirm body grade, seat selection and actuator class.

Product parameters

Selection notes

Specify flange standard and pressure class, body and seat material, operating temperature and medium composition, required fail-safe direction (air to open / spring close or reverse), and whether modulating control or simple on-off duty is needed. State control voltage and area classification for solenoid and switch accessories. Confirm available plant air pressure and quality; specify air treatment if supply contains moisture or particulates. Allow clearance for actuator height and maintenance access to the solenoid and filter-regulator station. When QT450 ductile iron body is specified, verify compatibility with the fluid, cleaning agents and maximum operating temperature on the datasheet.

Installation and maintenance guidance

Install the lug valve between flanges with gaskets suited to the medium and flange class. Align piping to avoid stem side load. Tighten flange bolts evenly in a cross pattern, using the lug ears to secure each side independently when dead-end service is required. Mount the actuator within orientation limits on the nameplate. Connect air supply through a filter-regulator and verify spring-return action with pilot air vented before putting the control circuit live. Exercise the valve through several cycles during commissioning and confirm limit switch feedback matches physical position. Periodically inspect seat contact and stem packing; replace packing when external leakage appears during thermal cycling. Check actuator epoxy coating and fastener integrity in outdoor or humid environments.

Comparison with adjacent designs

Wafer clamp pneumatic butterfly valves require through-bolts spanning both flanges and do not support downstream flange removal as conveniently as lug bodies on end-of-line service. High performance double-eccentric lug valves improve seat life under frequent modulating stroke but carry higher cost than centerline QT450 resilient seated valves for simple water shutoff. Double-flange triple-offset metal seated pneumatic valves address high-temperature steam where elastomer seats would not remain stable. PTFE-lined pneumatic lug butterfly valves address strong corrosive acids where bare ductile iron wetted surfaces would not be suitable. Electric actuators replace pneumatic drives when compressed air is unavailable, though stroke times are typically longer than pneumatic packages on the same valve size. The QT450 pneumatic lug butterfly valve fits municipal and utility branches where lug maintenance access, ISO 5211 actuator interchangeability and ductile iron economy are all required.

This QT450 pneumatic lug butterfly valve extends the Trekre & Fouten pneumatic butterfly valve range for plant owners who need automated isolation or proportional control on water, air and utility lines with a rugged ductile iron lug body. Contact our sales team with flange details, medium data, fail-safe preference and control signal requirements for quotation and delivery schedule from our China valve manufacturing facility.
