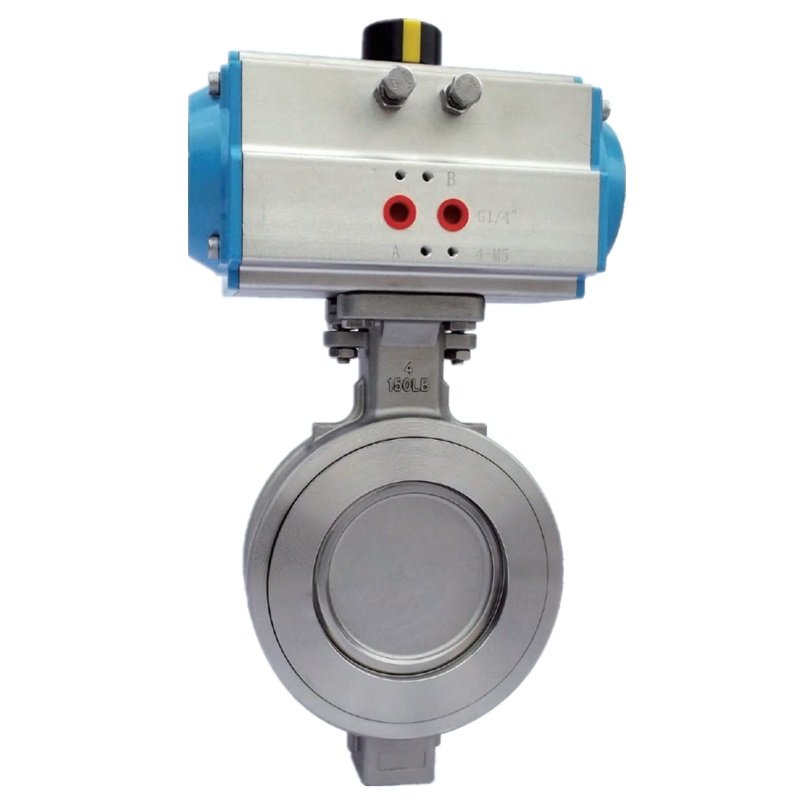

high performance wafer pneumatic buttefly valve is equipped with a pneumatic actuator control switch, a positioner can be added to adjust the valve proportionally (4-20ma), and an air solenoid valve, Air Filter Regulator, and limit switch can also be installed.
belong to the pneumatically operated valve
Pneumatic actuators can be double-acting or single-acting
Size: 2″-20″
Material: stainless steel 304/316, carbon steel WCB
Standard: ANSI Class 150, EN PN16, etc.
Product Overview
This page covers a high-performance wafer butterfly valve with pneumatic operation. The selected connection and pneumatic arrangement should be reviewed for the intended process duty.
Selection Notes
Confirm the operating medium, service conditions, wafer installation requirement, selected materials, seating design, pneumatic operating arrangement and any control requirements before ordering.
FAQ
What installation information is needed for a wafer butterfly valve?
Provide the mating flange and piping information so the wafer connection can be reviewed.
What pneumatic details should be confirmed?
State the required operating arrangement and any control or feedback needs for the selected configuration.
What should a quotation request include?
Include the medium, service conditions, size, connection requirement, selected materials and pneumatic operating needs.
