The PFA/FEP/PTFE Lined Jacketed Plug Valve can be operated with manual, electrically, pneumatically, or by worm gear. The external thermal insulation jacket can keep the temperature of the internal medium from decreasing and prevent the fluid from crystallizing. The valve passage is lined with fluoroplastic plastic anti-corrosion material. , can effectively isolate corrosive media as an effective switch.
PFA/FEP/PTFE Lining Jacketed Plug Valve

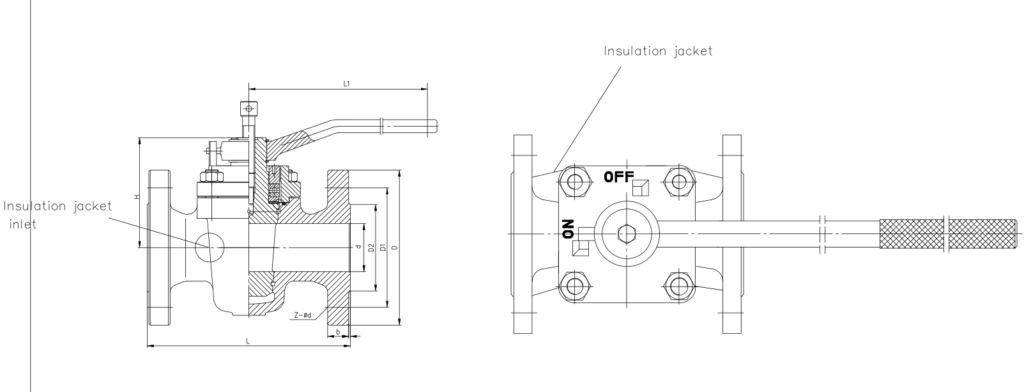

Lining Jacketed Plug Valve with manual Structure diagram
This lined plug valve has an external jacket. Confirm the heat-transfer medium, jacket connections and operating requirements for the selected assembly.
Insulation valves are widely used in various systems such as petroleum, chemical, metallurgy, and pharmaceuticals, which can effectively reduce the heat loss of the medium in the pipeline and prevent the appearance of crystallization and solidification of the medium. The function of the thermal insulation valve is that when the temperature is high or low, the material in the thermal insulation valve has a thermal insulation effect on the medium, so that the medium will not condense or stick to the inside of the valve body, so that the opening and closing of the valve can operate normally.
Size: 1″-16″
Body material: WCB, CF8
Lining material: PTFE, PFA, FEP, etc.
Valve core material: PTFE, PFA, FEP, etc.
Drive mode: manual, electric, pneumatic, etc.
This product is a jacketed lined plug valve with PFA, FEP or PTFE lining identified on the current page. Its jacketed construction distinguishes it from a standard lined plug-valve configuration; operator options must be selected for the order.
Product Overview
The current product information lists WCB or CF8 body options and PFA, FEP and PTFE lining or plug-core materials. Manual, electric, pneumatic and worm-gear operation are listed as available options, not as simultaneous standard equipment.
Selection Notes
Confirm the medium, concentration, temperature, pressure, size, connection, selected lining, jacket requirement and required operator option. Compatibility depends on the medium, concentration, temperature and operating conditions.
FAQ
What makes a jacketed lined plug valve different?
The product has a jacketed construction together with a lined plug-valve flow path. Confirm whether the jacketed configuration is required for the actual service.
Which lining materials are listed for this product?
The current page identifies PFA, FEP and PTFE options. Select the lining only after confirming the actual medium and operating conditions.
Can the operator be selected for the order?
The page lists manual, electric, pneumatic and worm-gear options. Confirm the required operator rather than assuming all options are supplied together.
