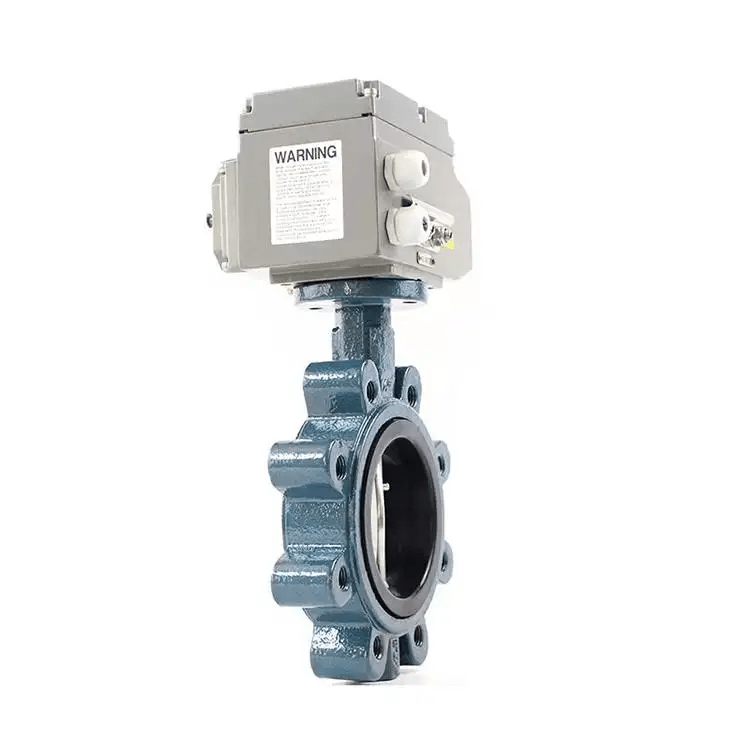

Electric Actuated Lug Butterfly Valve is a combination of a fine and small electric actuator and a midline soft sealing lug butterfly valve. Electric Automatic control valve,It is a kind of pipeline control element for industrial automation control. It can be controlled and operated with two-phase power supply 380VC and single-phase power supply AC220V, AC110V and DC 24VDC. It is usually used to remotely switch or regulate the pipeline medium.

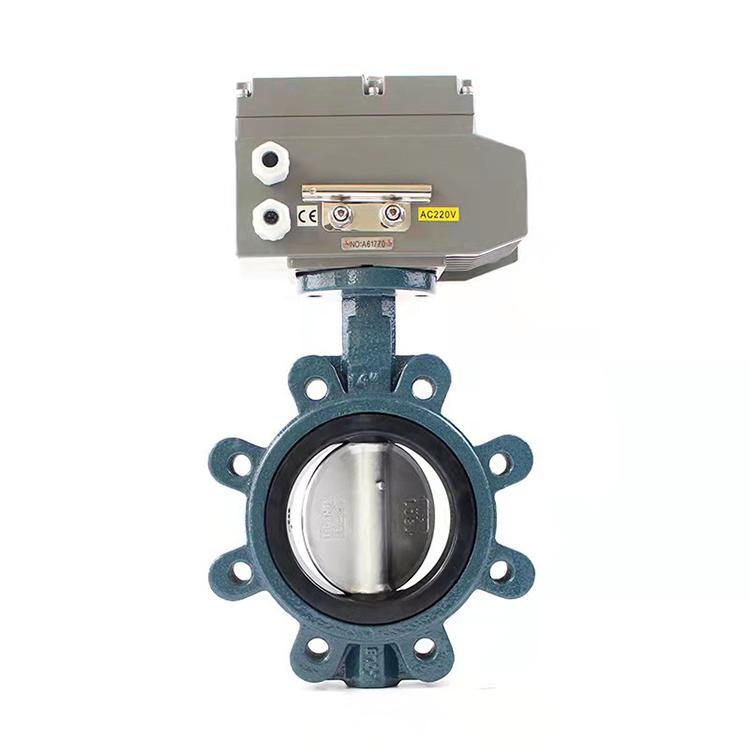

Electric Actuated Lug type Butterfly Valve Manufacturer
We are a manufacturer of Electric Lug Butterfly Valves located in China, the products have high cost performance, welcome to inquire
Electric Actuated Lug Butterfly Valve Function
Electric Lug type Butterfly Valve is also called single Plate butterfly valve
It is a simple structure of the regulating valve. that can be used for low pressure pipeline medium switching means that the closing element (valve or butterfly plate) is a disk, and rotates around the valve shaft to open and close.

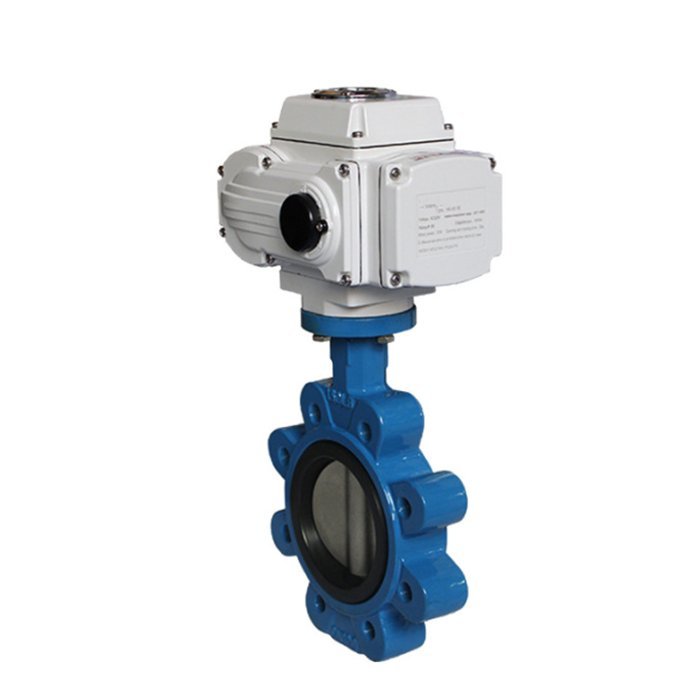

Electric Automatic Lug Butterfly valve
Electric Actuated Lug type Butterfly Valve that can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil products, liquid metals. In the pipeline mainly cut off and throttling effect. Butterfly valve opening and closing device is a disc-shaped butterfly plate, rotating around its own axis in the valve body, so as to achieve the purpose of opening and closing or adjusting.
Electric Lug Butterfly valve
Electric lug butterfly valve can be controlled by PLC, DCS series linkage, through 4-20ma, or 0-10V current control, if the customer needs 485 communication function, it can also be equipped with
In addition to the electric lug butterfly valve, the automatic valve series also has a pneumatic lug butterfly valve (the switching speed will be much faster than the electric one)
Product Overview
This page covers a lug butterfly valve with electric operation. The selected piping connection and electric operating arrangement should be reviewed for the intended application.
Selection Notes
Confirm the operating medium, service conditions, lug connection requirement, selected body, disc and seat materials, electric operating arrangement and applicable piping details before ordering.
FAQ
What piping details are needed for a lug butterfly valve?
Provide the mating flange and piping information so the required lug connection can be reviewed.
What should be specified for electric operation?
Confirm the required operating and control arrangement for the selected electric configuration.
What should be included in an inquiry?
Include the medium, service conditions, size, connection requirement, selected materials and electric operating needs.
