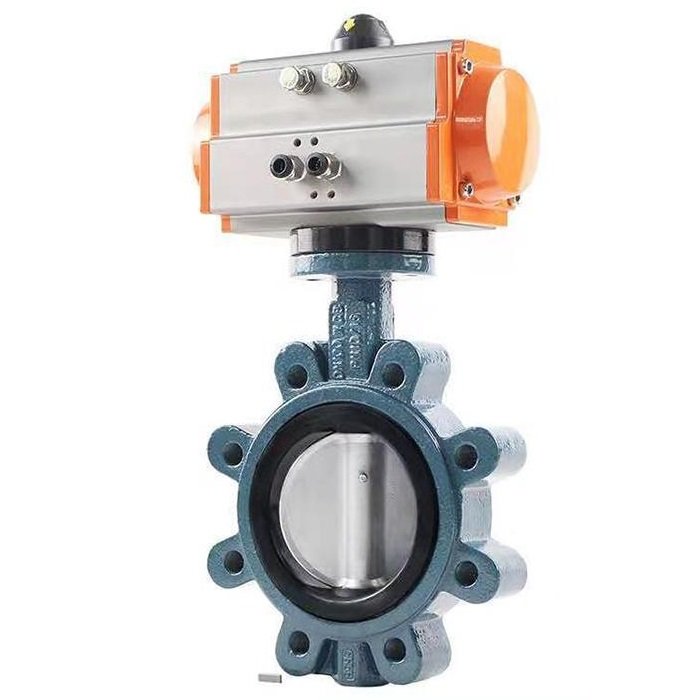

Pneumatic lug type butterfly valve pneumatic actuator can choose single or double acting, and other accessories can be selected, such as: Positioners for adjustment, limit switch,Air directional control valve (air solenoid valve), Air Filter Regulator.
Pneumatic lug butterfly valve Manufacturer

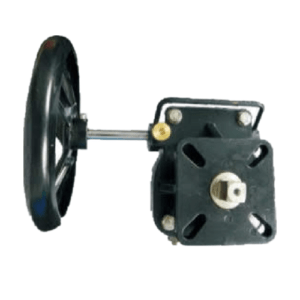

It belongs to Resilient seated Butterfly Valve, a kind of concentric butterfly valve, which can be made into Class150, JIS10K, EN PN16/PN10 and other standards.It is also possible to add a handwheel operating device to become a valve that can be driven by air and can also be manually opened and closed.

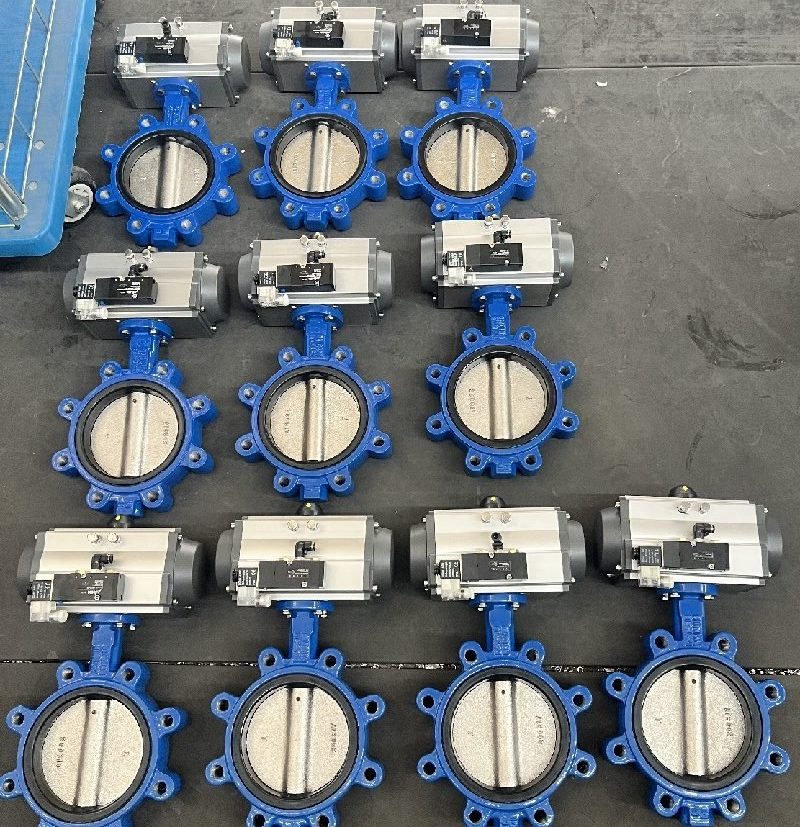

Pneumatic lug type butterfly valve-limit switch/Air directional control valve
After the pneumatic lug butterfly valve is equipped with an Air directional control valve, the air flow direction driven by the Air directional control valve is switched to control the opening and closing of the valve.

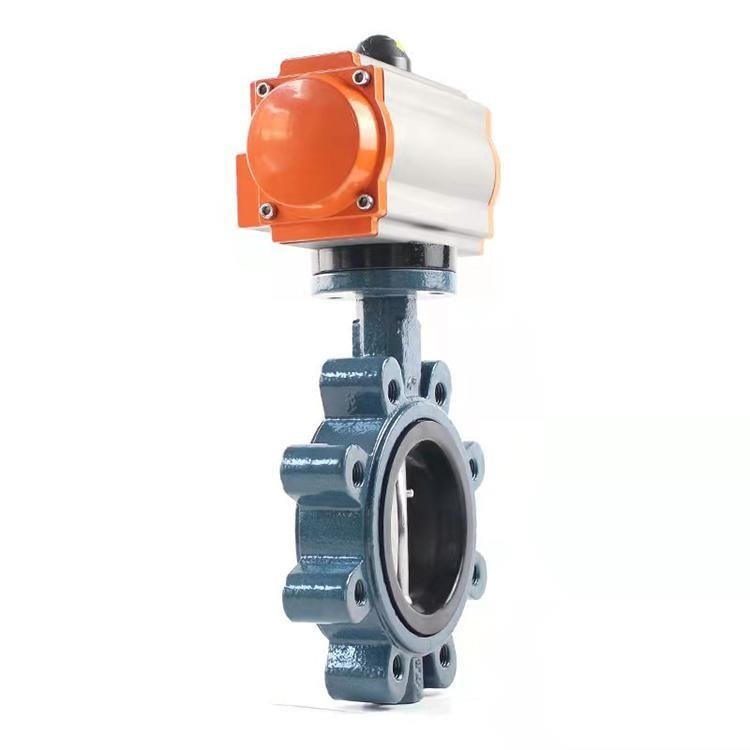

air Operated lug type butterfly valve Selection
We will match high-quality pneumatic valve actuators, you can choose single-acting or double-acting, valve body material, valve plate material, valve seat material also have a variety of choices
Switch form: manual (handle, worm gear), pneumatic, electric
Body material: QT450, WCB, CF8, CF8M
Seat material: EPDM, PTFE, NBR, etc.
Valve plate material: QT450, CF8, CF8M, etc.
Standards: API, JIS, EN, DIN, etc.
Connection method: lug clip
Valve structure: centerline butterfly valve
Size: 2 inches to 48 inches
form of action: single or double acting
Pneumatic actuators

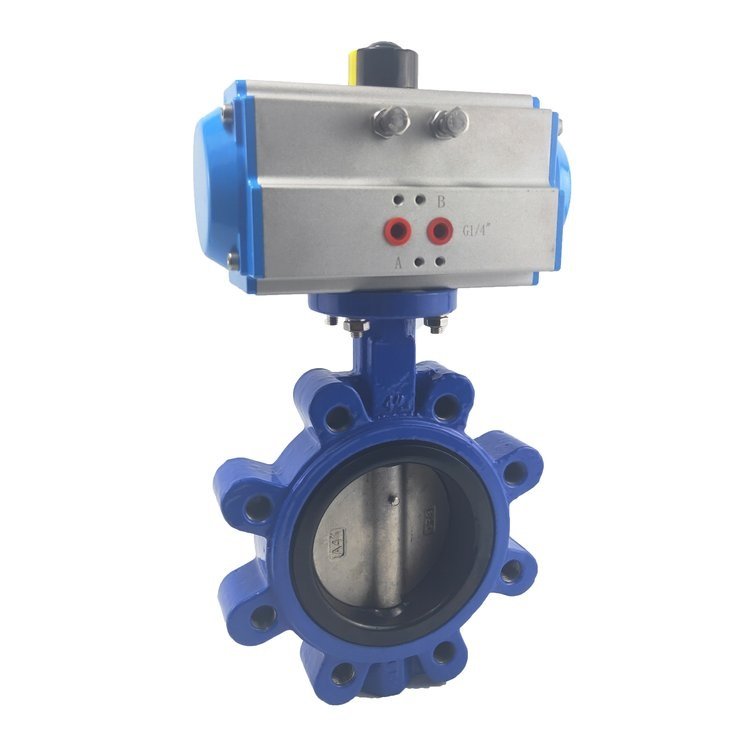

Double-acting actuators use compressed air for both opening and closing. Loss of air does not by itself establish a fail-open, fail-closed or fail-in-place position. If the assembly must hold its last position after loss of air, the actuator package needs a specified and validated holding arrangement, such as a lock-up circuit.
Single-acting spring-return, air-to-open: air pressure opens the valve; the spring closes it when actuator air is vented.
Single-acting spring-return, air-to-close: air pressure closes the valve; the spring opens it when actuator air is vented.
Pneumatic lug type butterfly valve supporting functions
Pneumatic lug butterfly valve can remotely feedback valve position signal (open or closed) after being equipped with limit switch. After installing Positioners, it can receive or output 4-20ma/0-10V analog signal to adjust the valve proportionally. Equipped with Air Filter Regulator The air pressure of the intake air can be adjusted and the water in the air can be filtered;In addition to pneumatic lug butterfly valves, automatic valves also have electric lug butterfly valves to choose from.
Product Overview
This product is a pneumatic lug-type butterfly valve. The current page describes a resilient-seated concentric configuration; confirm selected materials, connection and actuator arrangement.
Selection Notes
Confirm the medium, operating conditions, size, lug connection, body, disc and seat materials, shutoff or throttling requirement and pneumatic actuator arrangement.
FAQ
What body connection is identified?
The title identifies a lug-type butterfly valve. Confirm final installation requirements.
What materials are referenced?
The title references ductile iron, WCB and EPDM. Confirm how they apply to the final body, disc and seat configuration.
What pneumatic information is needed?
Confirm the required operating arrangement and applicable accessories for the selected configuration.
