ANSI Class 300 Swing Check Valve is a kind of one-way valve, which plays the role of preventing the backflow of the medium on the pipeline.
ANSI Class 300 Swing Check Valve

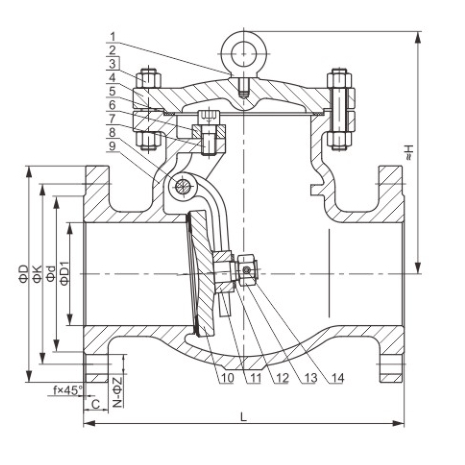

Swing Check Valve Structure diagram
The swing check valve adopts a built-in rocker arm swing structure. All the opening and closing parts of the valve are installed inside the valve body and do not penetrate the valve body. Keeping the rocker arm and disc inside the body avoids an external operating-shaft penetration, but does not eliminate potential leakage at the pressure boundary, body joints or seat. Confirm the required shell and seat leakage tests and acceptance criteria for the selected valve. The connection between the rocker arm and the disc of the swing check valve adopts a spherical connection structure, so that the disc has a certain degree of freedom in the range of 360 degrees, and has appropriate micro-position compensation.
Suitable for clean media, not suitable for media containing solid particles and high viscosity

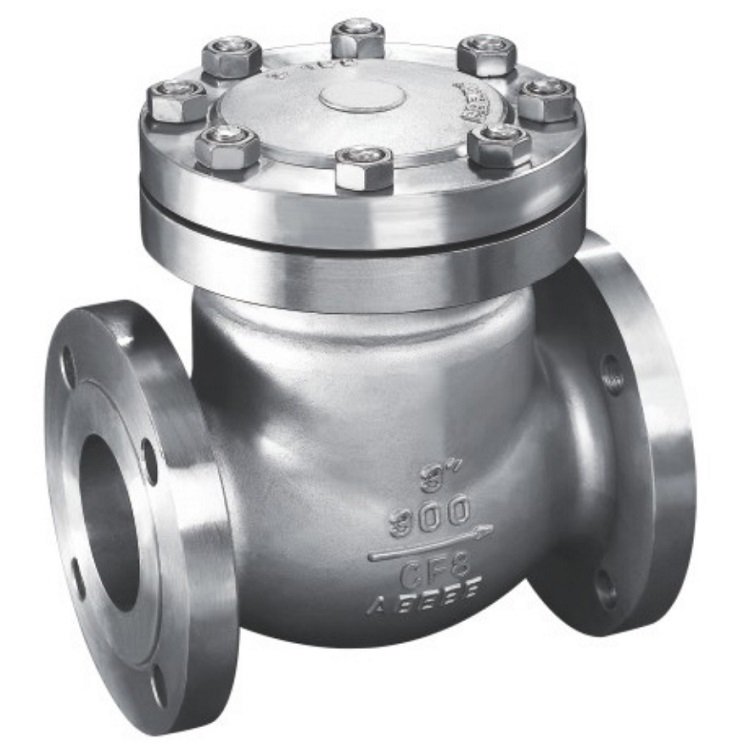

This product is an ANSI Class 300 swing check valve. Its hinged closure element is identified on the current product page, together with a flanged connection and listed body-material options. Confirm the selected configuration and service conditions before ordering.
Product Overview
The current page describes a swing check valve with a hinged closure element that closes in response to reverse-flow conditions. The listed product information includes a flanged configuration and CF8, CF8M and WCB body options.
Selection Notes
Confirm flow direction, installation orientation, flange requirement, medium, pressure and temperature conditions, selected body and closure materials, and the required closing behavior.
FAQ
What installation arrangement should be confirmed for this swing check valve?
Confirm the intended flow direction and installation arrangement for the selected product configuration.
What connection and material details are needed?
Provide the flange requirement and selected body and closure materials for review.
What service conditions should be supplied before ordering?
Include the medium, pressure and temperature conditions and the required size.
