This JIS 10K flanged swing check valve is listed with Union Bonnet and Flanged Bonnet options. Listed materials include SCPH2, SCS13 and SCS14. Confirm the selected material and bonnet arrangement before ordering.
Union Bonnet JIS 10K Swing Check Valve & Flange Bonnet JIS 10K Swing Check Valve
The swing check valve uses a hinged disc that opens with forward flow and closes when flow reverses, helping to prevent backflow in the pipeline. Confirm suitability for the actual medium, pressure, temperature and installation arrangement against the documentation for the selected valve.

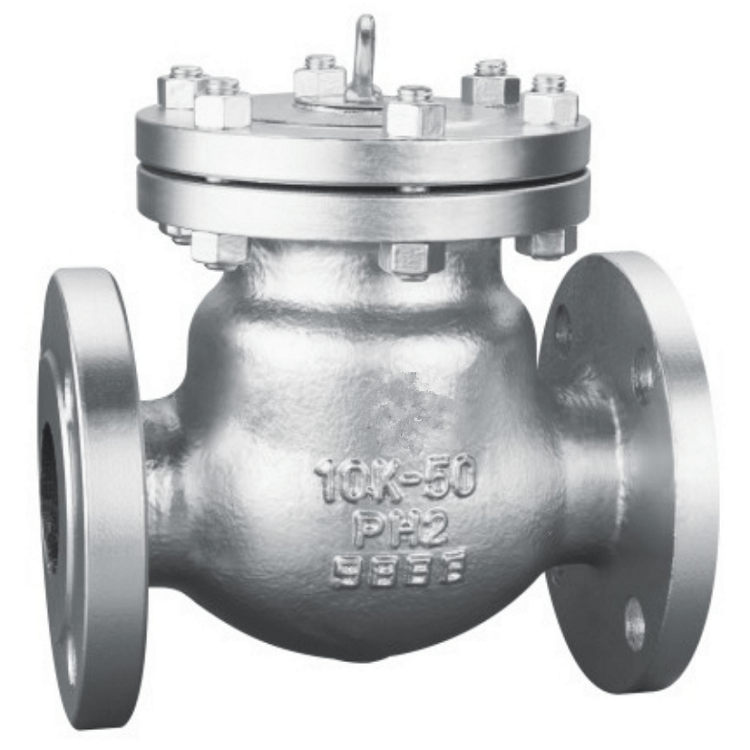

SCPH2 JIS 10K Swing Check Valve Flanged
According to different media, carbon steel material can also be selected.
The disc of the swing check valve rotates around the rotating shaft, and its fluid resistance is much smaller than that of the lift check valve. Installation must follow the instructions for the exact valve model, with the specified flow direction and an orientation that permits reliable disc closure. Do not treat the swing-check design as permission for unrestricted installation positions.
This product is a JIS 10K flanged swing check valve. Its hinged closure element and Union or Flanged Bonnet information are identified on the product page, together with listed SCPH2, SCS13 and SCS14 materials. Confirm the selected configuration and service conditions before ordering.
Product Overview
The page describes a flanged swing check configuration with JIS 10K product information. It lists Union Bonnet and Flanged Bonnet wording, plus SCPH2, SCS13 and SCS14 material options.
Selection Notes
Confirm the JIS 10K flange requirement, selected bonnet arrangement, materials, flow direction, installation orientation, medium and operating conditions.
FAQ
Will this JIS 10K swing check valve fit the flanges on my existing line?
Send the existing nominal size, flange standard and edition, drilling, facing and installation dimensions. Compare them with the drawing for the selected JIS 10K valve before approving a replacement; the designation alone does not establish that every connection dimension matches.
Which bonnet and material details should I specify for this JIS 10K valve?
The page identifies Union/Flanged Bonnet wording and SCPH2, SCS13 and SCS14 material references. State the bonnet arrangement required and request confirmation of the body, closure and seat materials for the quoted valve. Do not assume all listed alternatives describe the same supplied assembly.
What should I provide when ordering a replacement JIS 10K swing check valve?
Include the existing valve identification or drawing, required size and connection, medium, operating pressure and temperature. Show the intended flow direction and pipe orientation, and request the installation instructions for the selected replacement rather than assuming the old installation suits every configuration.
