main material of Stainless Steel JIS 10K Flange foot Valve is stainless steel SCS13 or SCS14, we are the Chinese manufacturer of Japanese standard flange foot valve

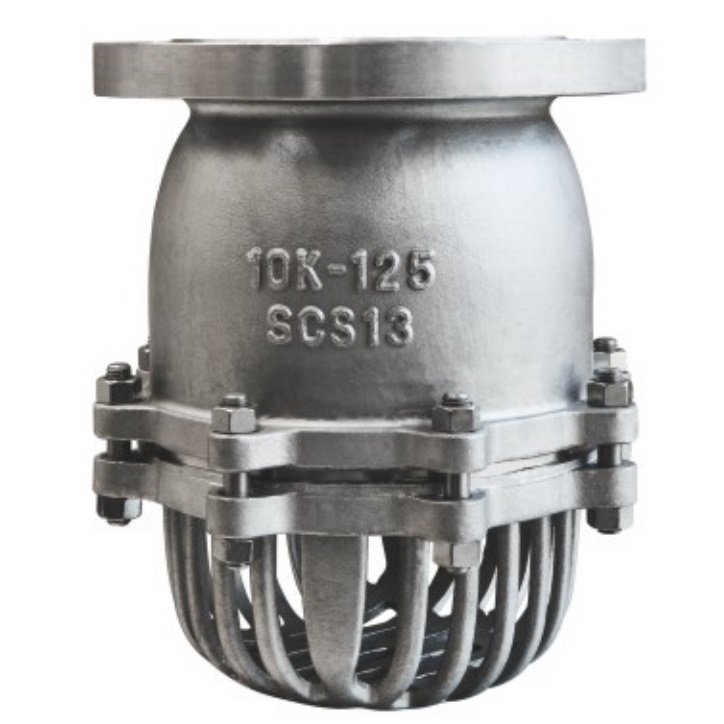

Stainless Steel SCS13/SCS14 JIS 10K Flange foot Valve
Its function is to ensure that the liquid flows in one direction in the suction pipe, so that the pump can work normally. When the pump stops working intermittently for a short time, the liquid cannot be returned to the water source tank to ensure that the suction pipe is full of liquid, so as to facilitate the start of the pump.
Stainless Steel JIS 10K Flange foot Valve

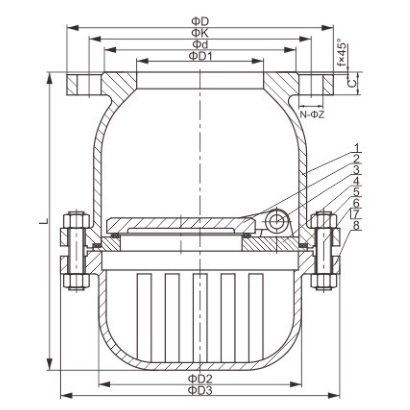

Its structure and function are the same as those of the check valve, except that the filter screen is added to the inlet to block impurities and protect the safety of the pipeline.
The 10K Flange foot Valve is an energy-saving valve. It is generally installed at the bottom end of the underwater suction pipe of the water pump. It restricts the return of the liquid in the water pump pipe to the water source, and provides a suction-side check function. There are many water inlet products and reinforcing ribs on the valve cover. It is not easy to be blocked, and is mainly used in the pipeline of pumping water. The role of waterway and support.
This product is a JIS 10K flanged foot valve. The current page identifies a unidirectional configuration for a suction-side check function. Confirm the selected connection, materials and operating conditions before ordering.
Product Overview
The current product information describes a flanged JIS foot valve with a unidirectional configuration. Its suction-side check function should be selected for the relevant piping arrangement.
Selection Notes
Confirm suction-piping details, flange connection, operating medium, selected materials, pressure conditions and installation arrangement before ordering.
FAQ
What suction-piping information is required?
Provide the suction-pipe arrangement and connection details for review.
What connection requirement should be confirmed?
Confirm the JIS flanged connection requirement for the selected installation.
Which material and service details should be supplied?
Include the medium, operating conditions and selected materials before ordering.
