JIS 20K Swing Check Valve is manufactured according to the Japanese JIS standard. The main materials are stainless steel SCS13/SCS14, carbon steel SCPH2. The pressure level of the valve is expressed by K.
JIS 20K Swing Check Valve Flange end
Confirm the permitted installation orientation and flow direction for the supplied swing check valve from its approved installation instructions and body markings. The disc of the swing check valve rotates around the rotating shaft, and its fluid resistance is generally smaller than that of the lift check valve, which is suitable for occasions with larger diameters.

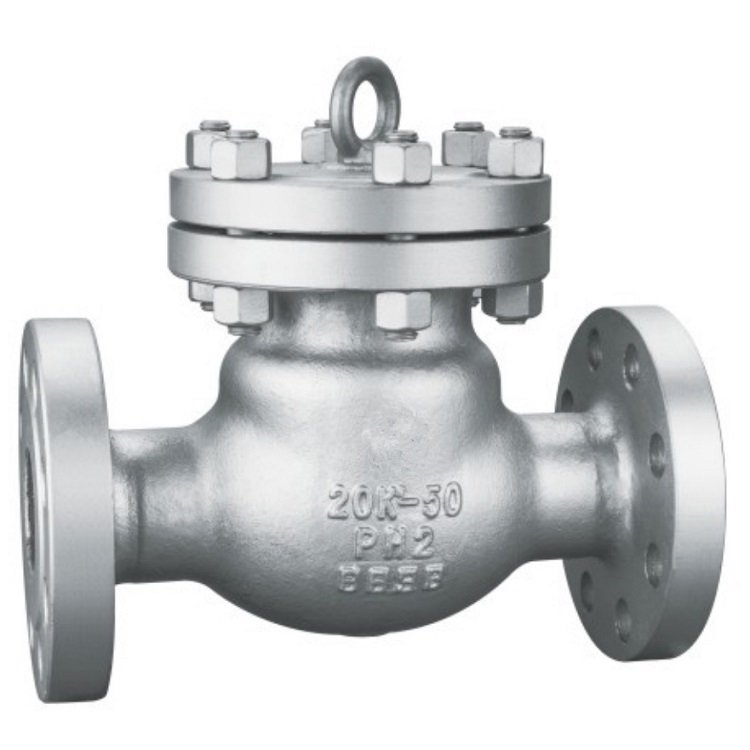

Flange connection JIS 20K Swing Check Valve
Body material: SCPH2, SCS13, SCS14
NPS:50A-500A
Design standard: JIS B2071 ,ASME B16.34
Face to face: JIS B2002
Flange standard: JIS B2220
Inspection & Test: JIS B2003
Type: Flanged Bonnet
This product is a JIS 20K flanged swing check valve. The current page identifies a hinged closure element, flanged bonnet configuration, and listed SCPH2, SCS13 and SCS14 materials. Confirm the selected configuration and project requirements before ordering.
Product Overview
The page describes a flanged swing check configuration with JIS 20K product information. It identifies a flanged bonnet arrangement and lists SCPH2, SCS13 and SCS14 materials.
Selection Notes
Confirm the JIS 20K project requirement, flanged bonnet arrangement, selected materials, flow direction, installation orientation, medium and operating conditions.
FAQ
Is the JIS 20K designation enough to approve this valve for my project?
Provide the design, flange and inspection requirements in the project specification together with the operating conditions. Request the selected valve rating, drawing and material documents for approval; the JIS 20K label alone does not confirm every requirement of the offered assembly.
How do I specify the flanged bonnet and materials for this JIS 20K swing check valve?
The page identifies a flanged bonnet and SCPH2, SCS13 and SCS14 material references. Identify the required material grade and ask for the exact body, closure and seat schedule for the quoted assembly. Confirm the selected materials for the actual medium and operating conditions.
What installation information should I send for this JIS 20K valve?
Send the piping flow direction and orientation, mating flange details and available installation space. Include the operating medium, pressure and temperature, and any existing valve identification. Use the selected assembly drawing to check face-to-face fit and access before accepting the installation arrangement.
