This ANSI Class 300 flanged globe valve page lists WCB and stainless-steel body options with handwheel operation. Class 300 is a pressure-class designation rather than a fixed 300 psi working pressure; allowable working pressure depends on the selected material, design temperature, valve construction and applicable ASME pressure-temperature rating.
Class 300 Globe Valve
The American standard 300# globe valve mainly has flange connection, and the flange connection surface can be used as RF, RTJ, etc.
China Class 300 Globe Valve manufacturer
We can process the product in different processes, such as polishing aisle, low temperature adaptation
Provide the required configuration and quantity with your inquiry so current availability and delivery time can be confirmed for the order.

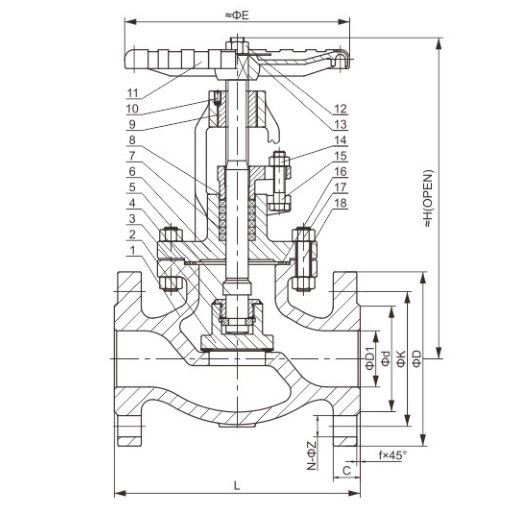

This product is a Class 300 flanged globe/stop valve. The current page lists CF8, CF8M and WCB body options and identifies flanged connection. Confirm the selected operating method, flow direction and service conditions for the specific valve before ordering.
Product Overview
The current page describes a flanged Class 300 globe-valve configuration with handwheel operation. Confirm the selected body and trim materials, flow direction, flange facing, pressure-temperature conditions and applicable order requirements for the specific valve.
Selection Notes
Confirm the Class 300 project requirement, medium, pressure and temperature conditions, size, body and trim materials, flange facing and connection, flow direction, shutoff or throttling requirement, operating method and applicable standard before ordering.
FAQ
What information do you need to check this Class 300 globe valve for my service?
Provide the medium, operating and design pressure and temperature, required size, material requirements and project documentation requirements. Request the approved pressure-temperature rating and test requirements for the selected valve rather than choosing from the Class 300 designation alone.
Which body materials are listed for this globe valve?
The current page lists CF8, CF8M and WCB body options. Confirm the selected material against the medium and service conditions.
Can this globe valve be considered for throttling?
A globe valve may be used for throttling depending on the valve design and service requirements. Confirm suitability for the selected application before ordering.
