JIS 20K flanged globe valve can also be called globe valve. JIS 20K is a grade name of the Japanese standard valve. The globe valve is mainly driven by the rotation of the handwheel, and the valve stem drives the valve seat to rise to open and fall to close.

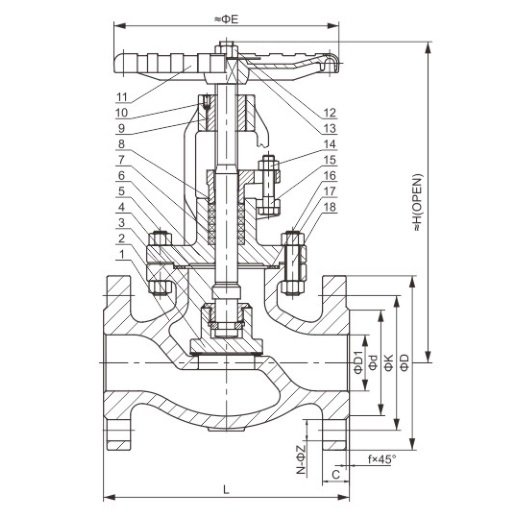

JIS 20K Flanged Globe valve Structure diagram
China JIS 20K Globe valve manufacturer

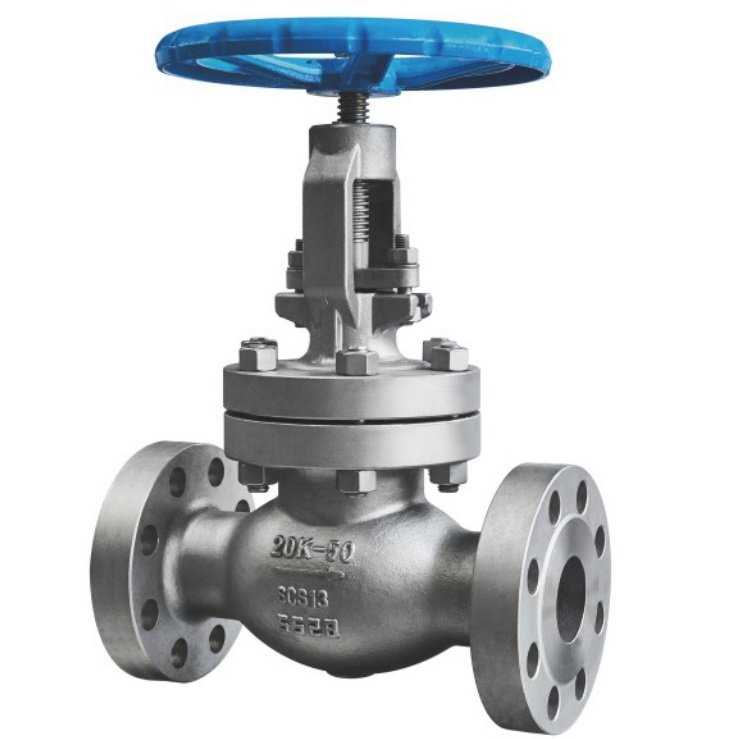

The following picture shows the globe valve manufactured by our factory. The product is made of precision casting. The design standard and structure size conform to the JIS standard.
Body material: CHPH2, SCS13, SCS14
NPS: 50A-500A
Design standard: JIS B2071
Face to face: JIS B2002
Flange standard: JIS B2220
Inspection & Test: JIS B2003
SCPH2 SCS13/SCS14 JIS 20K Globe valve
We are a JIS standard globe valve manufacturer located in China, we can provide customers with products of various materials, including stainless steel, cast steel, forged steel, etc., and can also increase the performance of the product through various treatments, such as low temperature treatment, multi-layer Epoxy resin painting treatment, oil-free degreasing treatment, etc.
This product is a JIS 20K flanged globe/stop valve. The current page identifies a handwheel-operated globe-valve arrangement and lists JIS product references. Confirm the selected material designation, flow direction and service conditions for the specific valve before ordering.
Product Overview
The current page lists JIS B2071 for design, JIS B2002 for face-to-face dimensions, JIS B2220 for flanges and JIS B2003 for inspection and testing. The page also lists flanged connection and JIS 20K product information; the material designation should be confirmed against the selected configuration.
Selection Notes
Confirm the required JIS 20K flange details, medium, pressure and temperature conditions, size, selected material designation, flow direction, shutoff or throttling requirement, handwheel operation and project standard before ordering.
FAQ
Can I replace an existing valve with this JIS 20K flanged globe valve?
Provide the existing nominal size, flange details, face-to-face dimension and available operating clearance. Request the selected valve drawing and confirm the connection, materials and operating conditions for the order before approving the replacement.
Which connection information should be confirmed?
Confirm the JIS flange details, mating piping requirements and the selected face-to-face arrangement before ordering.
What material information should be confirmed?
Confirm the material designation for the selected valve configuration because the current page contains more than one material reference.
